We are a manufacturer of precision tube fittings and machined components for military and commercial aircraft, engine, space, and industrial programs. Whether it's the simplest connector or the most complex fitting, each Airdrome part is made to perform under the most demanding conditions. Mission after mission.
In choosing the ideal supply partner for fittings and precision-machined parts, your decision will take into account quality, capability, dependability, availability, flexibility, and cost effectiveness. Since 1950, Airdrome has been the one fitting supplier who has delivered on each and every one of those factors. Project after project. Time after time.
Airdrome is owned by parent company Precision Castparts Corp. The Airdrome facility consists of 24,000 sq. feet of manufacturing, lab, production, and office space and is a Global Supplier; exporting products to 18 different countries. Airdrome has the following certifications and qualifications:
- ISO 9001 British Stds. Inst.
- AS9100 British Stds. Inst.
- PRI-NADCAP AS7112
- EADS EN9100
- Boeing Preferred Supplier
- Lockheed Star Supplier

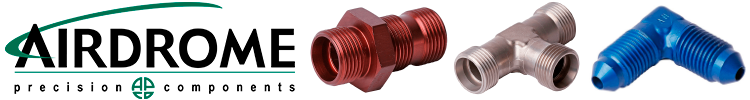

Airdrome Precision Components specializes in manufacturing hydraulic and pneumatic tube fittings, with focused manufacturing facilities producing:
- AN, MS, NAS, AS, KC, EN, NSA
- Flared and Flareless Fittings
- Weld Fittings
- Internal Swage
- BAC Lightweight
- External Swage
- Beam Seal
- Shape Memory-Compatible
- Self Locking Nut
- Special Machined Parts
- Industrial Fittings
- Make To Customer Specifications
Outside Sales Representatives
Southwest / Midwest / West Coast Regions:
60 Zepher Drive
Westfield, MA 01085
3551 Boulevard St. Charles, Suite 350
Canada H9H 3C4
'Beverly' Site No. 7
Flat No. 002, HAL II Stage
T: 91.80.25283764 / 25273669
Whether it's the simplest connector or the most complex fitting, each Airdrome part is made to perform under the most demanding conditions. Mission after Mission.

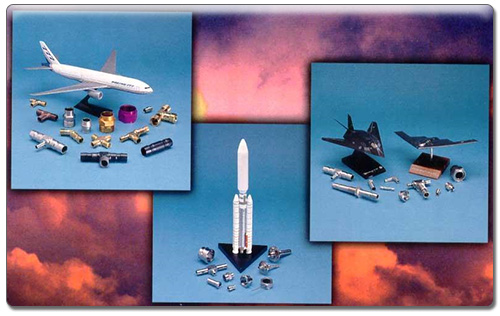

Our seven major product lines offer customers over 15,000 configurations; 27,000+ different line item products in all. We maintain an extensive stock of finished goods inventory to support Just-In-Time contracts and minimum stocking levels for long-term agreements with customers.
Our tremendous product depth means you get the parts you need, in the quantities you want, when you need them.
Airdrome’s 53 years of fitting experience is reflected in our ability to provide high quality, dependable products within the shortest lead times. From a manufacturing standpoint, we have created an advanced manufacturing facility devoted to producing products using single piece product flow.
Equipment and processing capabilities include:
- (2) 6-Spindle Automatic Screw Machines
- (10) Accuturn CNC Lathes
- Chevalier Surface Grinder
- Sunnen Hone
- (2) Okuma LB15 CNC Turning Centers
- (8) Okuma LNC-8C CNC Turning Centers
- Cadillac Engine Lathe
- Mercury Cut-off Saw
- (2) Pedestal Drill Presses
- (3) Hardinge CNC Lathes
- (4) J+L 14" Optical Comparators *
- Darex XPS-16 CNC Drill Grinder
- Tree Journeyman CNC Mill
- Okuma LB10 CNC Turning Center
- Baldor Disc Grinder
- Republic CNC Horizontal Mill
- (2) Cincinnati Centerless Grinders
- Reed A22B and A22 Thread Rollers
- Brother Hi-Tap Tapping Machine
- (2) K&K Calamar Lapping Machines
- Cyclo-Blast Vaport Hone
- Auto Technology Salt Spray Booth *
- Wilson 4JR Hardness Tester *
All products are manufactured using 100% Statistical Process Control (SPC), with operators empowered to shut down processes if a minimum 1.66Cpk is not maintained. This assures each and every piece within a lot meets drawing requirements – and in fact, hits nominal tolerances as opposed to using the entire tolerance band. What you get are consistent parts with minimal part to part variation.
To assure maximum available capacity, APC has also established long-term relationships with key suppliers. Our supply base has been strategically developed to provide us with additional capacity, operational flexibility and shorter lead times than our competitors. And our use of advanced supplier management techniques also allows us to assure unparalleled quality and delivery on all products – whether manufactured internally or externally.
APC – and our suppliers – have a demonstrated commitment to Lean Manufacturing techniques. Our use of Accelerated Improvement Workshops (AIW's), SPC and Cellular Manufacturing assures the highest quality and shortest lead times for every production order.
From initial quote to final product delivery, Airdrome is committed to meeting or exceeding the needs of our customers.
Airdrome Precision Components not only manufactures high quality fittings, we also offer value-added services to a variety of OEM's. Please contact our Sales department for further information and quotes related to utilizing our state-of-the-art product testing facility.
Airdrome Precision Components Testing Capabilities
Airdrome Precision Components Test Laboratory has hydromechanical test stands to perform fitting/tube assembly tests as required by various aerospace procurement general specifications, including AS 18280, AS 4444, AS 85421, AS 85720, and ISO 7169. The capabilities of the APC test lab include:
- Static Nitrogen Pressure Testing
- Pneumatic Pressure Testing
- Rotary Flexure Fatigue Testing
- Damped Wave Impulse Testing
Static Hydraulic Pressure Test
Aerospace specifications typically require proof pressure testing at two times operating pressure, and burst pressure testing at four times operating pressure. Each of these tests is a static pressure that requires test samples to be pressurized for 3 to 5 minutes without leaking. Also, burst pressure to fail tests may be performed. This test requires increasing fluid pressure until leaking, or catastrophic failure, occurs. APC test lab’s pressure test stand is capable of pressures up to 30,000 psi.
Pneumatic Pressure Test
To meet the requirements of current test specifications APC has a pneumatic test stand capable of testing with pressurized N2 gas up to 5,000 psi, and He2 gas up to 3,000 psi. The requirement usually is to pressurize the fitting or tube assembly to operating pressure with nitrogen gas for three to five minutes without leaking. To detect leaks samples are submerged in water after being connected to the test manifold.
Rotary Flexure Fatigue Test
Specifications vary in what is required for rotary flexure fatigue testing. A test series may be conducted that requires all samples, usually six per size, to pass 107 cycles at a minimum bending stress level. Or, the requirement may be to develop an S/N curve with six samples plus to additional samples to pass 107 cycles at a minimum bending stress. APC test lab has five rotary flexure stations to meet either requirement. Each station is capable of working with tube assemblies ranging in size from –02 (0.125 inch diameter tube) to size –32 (2 inch diameter tube), with an operating pressure of up to 8,000 psi, and a temperature range from ambient to 275°F. Specifications that may be referenced for this testing are SAE ARP 1185 and ISO 7257.
Damped Wave Impulse Test
The typical requirement for the damped wave impulse test is 200,000 pressure cycles with pressure peaks approximately 150% of the operating pressure (actual pressure peak depends on the specification and operating pressure). The test is conducted at a rate of 65 ± 5 cycles per minute. The APC lab impulse stand is capable of conducting tests with an operating pressure of 5,000 psi, with pressure peaks of 7,500 psi, and a temperature range from ambient to 275°F. Specifications that may be referenced for this testing are SAE ARP 603 and ISO 6772.
* Inspection/Test Equipment
We have received numerous quality awards and certifications. We are proud to be the only fitting manufacturer to back all products with complete Quality Assurance and Statistical Process Control (SPC) certifications from virtually every major domestic and international aircraft and engine manufacturer.
- ISO 9001:2008 / AS9100-C
- Boeing Preferred Supplier
- Vought Platinum
Our Quality Policy
In our resolve to remain a profitable and successful company, we are fully committed to the highest possible standards of quality in our products, processes, and procedures. To accomplish this, we maintain a process of ongoing improvement with a sustained commitment to Advanced Quality System activities. This effort ensures products and services which maximize customer satisfaction and serve as the benchmark for our industry.
James H. Eaton
President and Chief Executive Officer
Airdrome Precision Components
Airdrome Precision Components, located in Gardena, California, designs, manufactures, and distributes a full range of precision tube fittings and machined parts used in a wide variety of commercial and military aircraft, engine, space, and industrial applications. Founded in 1950, the company enjoys a reputation for excellent service and high-quality products manufactured from stainless steel, titanium, aluminum, and other specialty alloys to meet exacting standards specified by customers.
Whether your needs are for AN, MS, NAS, AS, MA, KC, EN, NSA, ISO, Weld, Braze, Internal Swage, BAC Lightweight, Beam Seal, Shape Memory-Compatible, Self Locking Nut, Seals, Special Machined Parts, or Industrial Fittings, Airdrome makes world-class products and delivers them the world over.
Airdrome provides all these fittings to our Authorized Distributors (see below), who, in turn, sell to a world wide variety customer base.
